Security



Butler Lampson



TECS Week 2005

January 2005



Note: These slides were prepared in Word, and some of the formatting is lost in this HTML version. Here are the Word and Acrobat versions.

Outline

Introduction: what is security?

Principals, the “speaks for” relation, and chains of responsibility

Secure channels and encryption

Names and groups

Authenticating systems

Authorization

Implementation



REAL-WORLD SECURITY

It’s about value, locks, and punishment.

-Locks good enough that bad guys don’t break in very often.

-Police and courts good enough that bad guys that do break in get caught and punished often enough.

-Less interference with daily life than value of loss.



Security is expensive—buy only what you need.

-People do behave this way

-We don’t tell them this—a big mistake

-Perfect security is the worst enemy of real security

Elements of Security

Policy:             Specifying security
                        What is it supposed to do?

Mechanism:   Implementing security
                        How does it do it?

Assurance:     Correctness of security
                        Does it really work?

Abstract Goals for Security

Secrecy              controlling who gets to read information

Integrity             controlling how information changes or resources are used

Availability        providing prompt access to information and resources

Accountability   knowing who has had access to information or resources

Dangers

Dangers

Vandalism or sabotage that

damages information  integrity

disrupts service           availability

Theft of money                    integrity

Theft of information            secrecy

Loss of privacy                    secrecy

Vulnerabilities



Vulnerabilities

Bad (buggy or hostile) programs

Bad (careless or hostile) people
giving instructions to good programs

Bad guys corrupting or eavesdropping on communications

Threats

Adversaries that can and want to exploit vulnerabilities

Defensive strategies

Coarse: Isolate—Keep everybody out

Disconnect

Medium: Exclude—Keep the bad guys out

Code signing, firewalls

Fine: Restrict—Let the bad guys in, but keep them from doing damage

Hardest to implement

Sandboxing, access control

Recover—Undo the damage. Helps with integrity.

Backup systems, restore points

Punish—Catch the bad guys and prosecute them

Auditing, police

Assurance

Trusted Computing Base (TCB)

Everything that security depends on

Must get it right

Keep it small and simple

Elements of TCB

Hardware

Software

Configuration

Defense in depth

Assurance: Defense in Depth

Network, with a firewall

Operating system, with sandboxing

Basic OS (such as NT)

Higher-level OS (such as Java)

Application that checks authorization directly



All need authentication

TCB Examples

Policy: Only outgoing Web access

TCB: firewall allowing outgoing port 80 TCP connections, but no other traffic

Hardware, software, and configuration



Policy: Unix users can read system directories, and read and write their home directories

TCB: hardware, Unix kernel, any program that can write a system directory (including any that runs as superuser).

Also /etc/passwd, permissions on all directories.

TCB: Configuration

Done again for each system, unlike HW or SW

New chance for mistakes each time

Done by amateurs, not experts

No learning from experience

Little training



Needs to be very simple

At the price of flexibility, fine granularity



Making Configuration Simple

Users—keep it simple

At most three levels: self, friends, others

Three places to put objects

Everything else done automatically with policies

Administrators—keep it simple

Work by defining policies. Examples:

Each user has a private home folder

Each user in one workgroup with a private folder

System folders contain vendor-approved releases

All executable programs signed by a trusted party

Today’s systems don’t support this very well

Assurance: Configuration Control

It’s 2 am. Do you know what software is running on your machine?

Secure configuration Þ some apps don’t run

Hence must be optional: “Secure my system”

Usually used only in an emergency

Affects the entire configuration

Software: apps, drivers, macros

Access control: shares, authentication

Also need configuration audit

Why We Don’t Have “Real” Security

A. People don’t buy it

Danger is small, so it’s OK to buy features instead.

Security is expensive.

Configuring security is a lot of work.

Secure systems do less because they’re older.

Security is a pain.

It stops you from doing things.

Users have to authenticate themselves.



B. Systems are complicated, so they have bugs.

Especially the configuration

“Principles” for Security

Security is not formal

Security is not free

Security is fractal



Abstraction can’t keep secrets

“Covert channels” leak them



It’s all about lattices



ELEMENTS OF SECURITY

Policy:             Specifying security
                        What is it supposed to do?

Mechanism:   Implementing security
                        How does it do it?

Assurance:     Correctness of security
                        Does it really work?

Specify: Policies and Models

Policy    specifies the whole system informally.

Secrecy                   Who can read information?

Integrity                  Who can change things, and how?

Availability             How prompt is the service?

Model—specifies just the computer system, but does so precisely.

Access control model          guards control access
to resources.

Information flow model      classify information, prevent disclosure.

Implement: Mechanisms and Assurance

Mechanisms — tools for implementation.

Authentication    Who said it?

Authorization     Who is trusted?

Auditing              What happened?

Trusted computing base.

Keep it small and simple.

Validate each component carefully.

 Information flow model
(Mandatory security)

A lattice of labels for data:

unclassified < secret < top secret;

public < personal < medical < financial

label( f (x)) = max(label( f ), label(x))

Labels can keep track of data properties:

how secret                          Secrecy

how trustworthy                 Integrity

When you use (release or act on) the data, user needs a ³ clearance

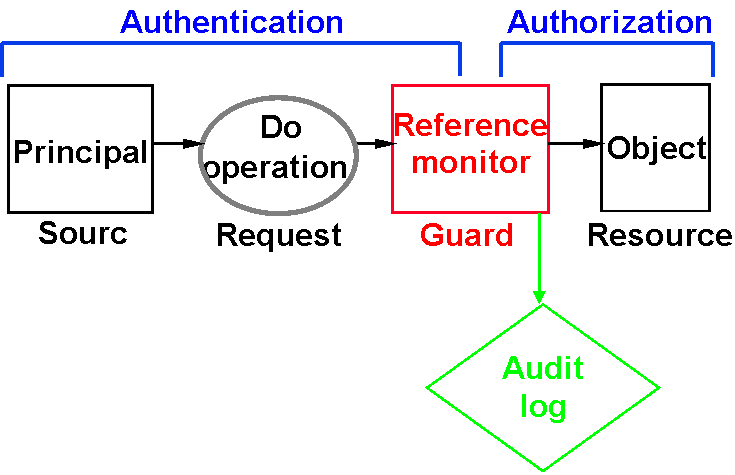

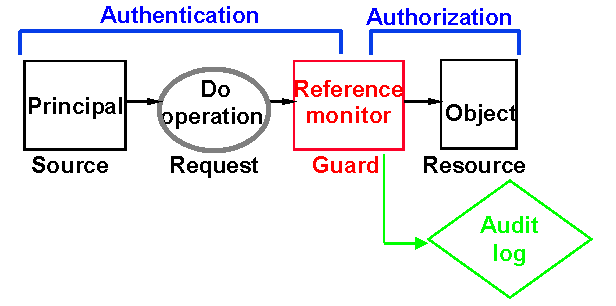

Access Control Model

Guards control access to valued resources.












Access Control

Guards control access to valued resources.

Structure the system as —

Objects        entities with state.

Principals   can request operations

                    on objects.

Operations  how subjects read or change objects.

Access Control Rules

Rules control the operations allowed
for each principal and object.



Principal may do

Operation      on

Object

Taylor

Read

File “Raises

Lampson

Send “Hello

Terminal 23

Process 1274

Rewind

Tape unit 7

Schwarzkopf

Fire three shots

Bow gun

Jones

Pay invoice 432

Account Q34

Mechanisms—The Gold Standard

Authenticating principals

-Mainly people, but also channels, servers, programs (encryption makes channels, so key is a principal)

Authorizing access

-Usually for groups, principals that have some property, such as “Microsoft employee” or “type-safe” or “safe for scripting”

Auditing



Assurance

Trusted computing base

Standard Operating System Security

Assume secure channel from user (without proof)

Authenticate user by local password

Assign local user and group SIDs

Access control by ACLs: lists of SIDs and permissions

Reference monitor is the OS, or any RPC target

Domains: same, but authenticate by RPC to controller

Web servers: same, but simplified

Establish secure channel with SSL

Authenticate user by local password (or certificate)

ACL on right to enter, or on user’s private state

NT Domain Security

Just like OS except for authentication

OS does RPC to domain for authentication

Secure channel to domain

Just do RPC(user, password) to get user’s SIDs

Domain may do RPC to foreign domain

Pairwise trust and pairwise secure channels

SIDs include domain ID, so a domain can only authenticate its own SIDs

Web Security Today

Server: Simplified from single OS

Establish secure channel with SSL

Authenticate user by local password (or certificate)

ACL on right to enter, or on user’s private state

Browser (client): Basic authentication

Of server by DNS lookup, or by SSL + certificate

Of programs by supplier’s signature

Good programs run as user

Bad ones rejected or totally sandboxed



END-TO-END EXAMPLE

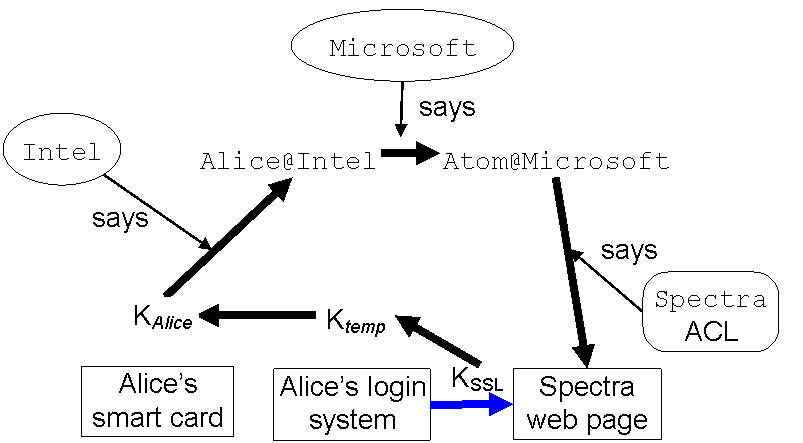

Alice is at Intel, working on Atom, a joint Intel-Microsoft project

Alice connects to Spectra, Atom’s web page, with SSL

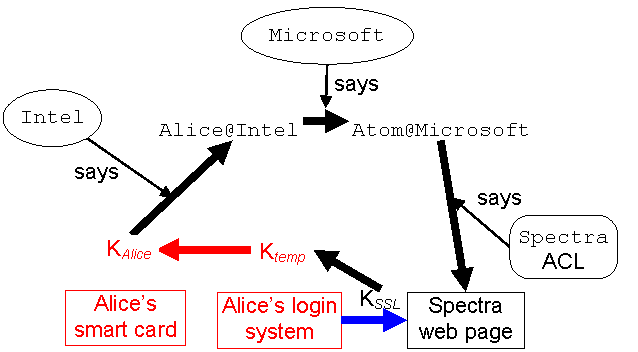

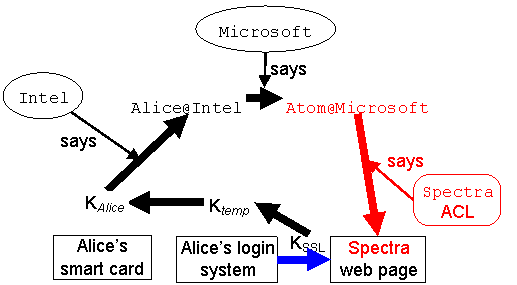

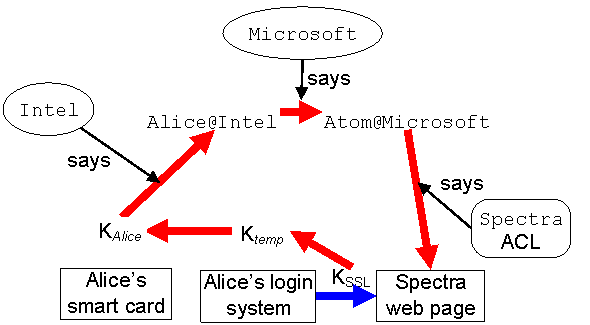

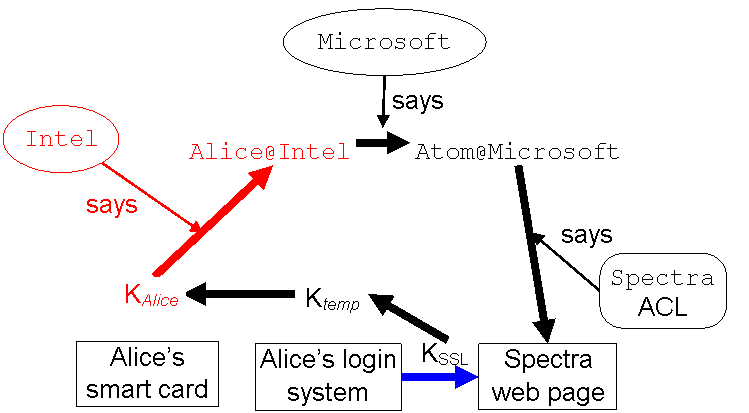

Chain of responsibility

Alice at Intel, working on Atom, connects to Spectra, Atom’s web page, with SSL

Chain of responsibility:

    KSSL Þ Ktemp Þ KAlice
  Þ Alice@Intel Þ Atom@Microsoft  Þ Spectra

Principals

Authentication:    Who sent a message?

Authorization:     Who is trusted?

Principal — abstraction of “who”:

People               Lampson, Taylor

Machines           VaxSN12648, Jumbo

Services             SRC-NFS, X-server

Groups               SRC, DEC-Employees

Roles                 Taylor as    Manager

Joint authority   Taylor and Lampson

Weakening        Taylor or     UntrustedProgram

Channels           Key #7438

Theory of Principals

Principal says statement              P says s

Lampson saysread /SRC/Lampson/foo

SRC-CA says “Lampson’s key is #7438

Axioms

If A says s and A says (s implies s') then A says s'

If A = B then (A says s) = (B says s)

The “Speaks for” Relation  Þ

Principal A speaks for B about T  A ÞT B
If A says something
in set T, B does too:

Thus, A is stronger than B, or responsible for B, about T

Precisely: (A says s) Ù (s Î T) implies (B says s)

These are the links in the chain of responsibility

Examples

Alice          Þ Atom           group of people

Key #7438  Þ Alice         key for Alice

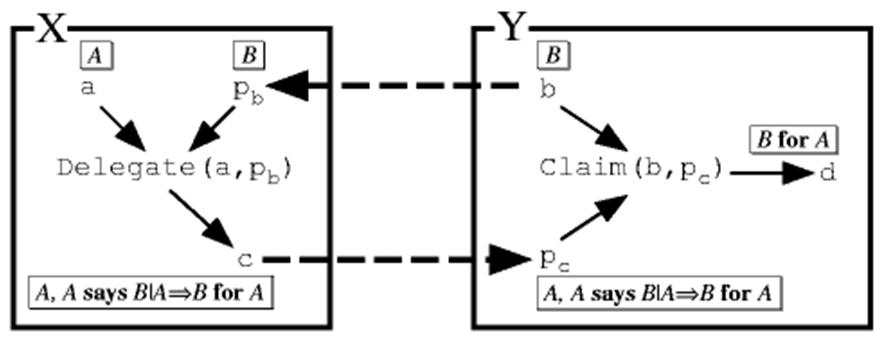

Delegating Authority

How do we establish a link in the chain: a fact Q Þ R

The “verifier” of the link must see evidence, of the form

P  says Q Þ R

There are three questions about this evidence

How do we know that P says the delegation?

Why do we trust P for this delegation?

Why is P willing to say it?

How Do We Know P says X?

If P is

then

a key

P signs X cryptographically

some other channel

message X arrives on channel P

the verifier itself

X is an entry in a local database

These are the only ways that the verifier can directly know who said something: receive it on a secure channel or store it locally

Otherwise we need C Þ P, where C is one of these cases

Get this by recursion

Why Do We Trust The Delegation?

We trust A to delegate its own authority.

Delegation rule: If P  says Q Þ R then Q Þ R

Reasonable if P is competent and accessible.

Why Is P Willing To Delegate To Q?

Some facts are installed manually

KIntel Þ Intel, when Intel and Microsoft establish a direct relationship

The ACL entry Lampson Þ usr/Lampson

Others follow from the properties of some algorithm

If Diffie-Hellman yields KDH, then I can say
KDH Þ me, provided

You are the other end of the KDH run

You don’t disclose KDH to anyone else

You don’t use KDH to send anything yourself.”

In practice I simply sign KDH Þ Kme

Why Is P Willing To Delegate To Q?

Others follow from the properties of some algorithm

If server S starts process P from and sets up a channel C from P, it can say C Þ SQLv71

Of course, only someone who believes S Þ SQLv71 will believe this

To be conservative, S might compute a strong hash HSQLv71 of SQLv71.exe and require

Microsoft saysHSQLv71 Þ SQLv71

before authenticating C

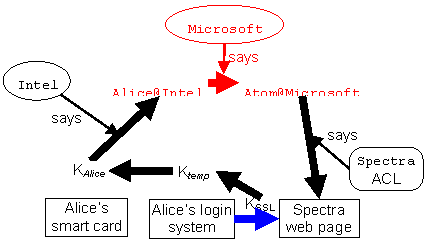

Chain of responsibility

Alice at Intel, working on Atom, connects to Spectra, Atom’s web page, with SSL

Chain of responsibility:

    KSSL Þ Ktemp Þ KAlice
  Þ Alice@Intel Þ Atom@Microsoft  Þ Spectra

Authenticating Channels

Chain of responsibility:

KSSL

Þ

Ktemp

Þ

KAlice

Þ

Alice@Intel

Þ ...

Ktemp says

KAlice says









(SSL setup)

(via smart card)









Authenticating Names: SDSI

A name is in a name space, defined by a principal P

P is like a directory. The root principals are keys.

Rule: P speaks for any name in its name space

KIntel Þ Intel Þ Intel/Alice   (= Alice@Intel)

Authenticating Names

KIntel Þ Intel Þ Intel/Alice   (= Alice@Intel)

Ktemp

Þ

KAlice

Þ

Alice@Intel

Þ ...





KIntel says





Authenticating Groups

A group is a principal; its members speak for it

Alice@Intel   Þ Atom@Microsoft

Bob@Microsoft Þ Atom@Microsoft

Evidence for groups: Just like names and keys.

KMicrosoft Þ Microsoft Þ Microsoft/Atom
                                             (= Atom@Microsoft)

Authenticating Groups

KMicrosoft Þ Microsoft Þ Atom@Microsoft

... Þ

KAlice

Þ

Alice@Intel

Þ

Atom@Microsoft

Þ ...







KMicrosoft says





Authorization with ACLs

View a resource object O as a principal

P on O’s ACL means P can speak for O

Permissions limit the set of things P can say for O

If Spectra’s ACL says Atom can r/w, that means

Spectra says Atom@Microsoft Þr/w Spectra

Authorization with ACLs

Spectra’s ACL says Atom can r/w

...Þ

Alice@Intel

Þ

Atom@Microsoft

Þr/w

Spectra







Spectra says



End-to-End Example: Summary

Request on SSL channel: KSSL says “read Spectra

Chain of responsibility:

    KSSL Þ Ktemp Þ KAlice
  Þ Alice@Intel Þ Atom@Microsoft  Þ Spectra

Compatibility with Local OS?

(1) Put network principals on OS ACLs

(2) Let network principal speak for local one

Alice@Intel Þ Alice@microsoft

Use network authentication

replacing local or domain authentication

Users and ACLs stay the same

(3) Assign SIDs to network principals

Do this automatically

Use network authentication as before

Summaries

The chain of responsibility can be long

Ktemp says KSSL Þ Ktemp

KAlice says Ktemp Þ KAlice

KIntel says KAlice Þ Alice@Intel

KMicrosoft says Alice@Intel Þ Atom@Microsoft

Spectra says Atom@Microsoft Þr/w Spectra

Can replace a long chain with one summary certificate

Spectra says KSSL Þr/w Spectra

Need a principal who speaks for the end of the chain

This is often called a capability

Lattice of Principals

A and B                               max, least upper bound

(A and B) says s º (A says s) and (B says s)

A  or   B                              min, greatest lower bound

(A  or   B) says s º (A says s)  or  (B says s)

Now A Þ B º ( A = A and B ) º ( B = A or B )

Thus Þ is the lattice’s partial order



Could we interpret this as sets? Not easily: and is not intersection

Facts about Principals

A = B is equivalent to (A Þ B) and (B Þ A)

Þ is transitive

and, or are associative, commutative, and idempotent

and, or are monotonic:

If A' Þ A then   (A' and B) Þ (A and B)

                          (A'  or   B) Þ (A  or  B)

Important because a principal may be stronger than needed

Lattices: Information Flow to Principals

A lattice of labels:

unclassified < secret < top secret;

public < personal < medical < financial

Use the same labels as principals, and let Þ represent clearance

lampson Þ secret

Or, use names rooted in principals as labels

lampson/personal, lampson/medical

Then the principal can declassify

SECURE CHANNELS

A secure channel:

• says things directly                                                             C says s

• has known   possible receivers                       secrecy

                       possible senders                       integrity

if P is the only possible sender, then                       C  Þ P

Examples

Within a node: operating system (pipes, etc.)

Between nodes:

Secure wire        difficult to implement

Network            fantasy for most networks

Encryption         practical

Names for Channels

A channel needs a name to be authenticated properly

KAlice says Ktemp Þ KAlice

It’s not OK to have

KAlice says “this channel Þ KAlice

unless you trust the receiver not to send this on another channel!

Thus it is OK to authenticate yourself by sending a password to amazon.com on an SSL channel already authenticated (by a Verisign certificate) as going to Amazon.



Multiplexing a Channel

Connect n channels A, B, ... to one channel X to make n new sub-channels X|A, X|B, ...  Each subchannel has its own address on X

The multiplexer must be trusted

Quoting

 A | B                                   A quoting B

A | B says s º A says (B says s)



Axioms

| is associative

| distributes over and, or

A Þ*ÞA|B A | B

Multiplexing a Channel: Examples



Multiplexer

Main channel

Subchannels

Address

OS

node–node

process–process

port or process ID

Network routing

node–network

node–node

node address

Signed Secure Channels

The channel is defined by the key: If only A knows K–1, then K Þ A (Actually, if only A uses K–1, then K Þ A)

K says s is a message which K can verify

The bits of “K says s” can travel on any path

Abstract Cryptography: Sign/Verify

Verify(K, M, sig) = true iff sig = Sign(K', M) and K' = K-1

Is sig K’s signature on M?

Concretely, with RSA public key:

Sign(K-1, M) = RSAencrypt(K-1, SHA1(M))

Verify(K, M, sig) = (SHA1(M) = RSAdecrypt(K, sig))

Concretely, with AES shared key:

Sign(K, M)         =   SHA1(K, SHA1(K || M))

Verify(K, M, sig) = ( SHA1(K, SHA1(K || M)) = sig)



Concrete crypto is for experts only!

Abstract Cryptography: Seal/Unseal

Unseal(K-1, Seal(K, M)) = M, and without K-1 you can’t learn anything about M from Seal(K, M)

Concretely, with RSA public key:

Seal(K, M)             =  RSAencrypt(K-1, IV || M)

Unseal(K, Msealed)   =  RSAdecrypt(K, M sealed).M

Concretely, with AES shared key:

Seal(K, M)             = AESencrypt(K, IV || M)

Unseal(K, M sealed)  =  AESdecrypt(K, M sealed).M



Concrete crypto is for experts only!

Sign and Seal

Normally when sealing must sign as well!

Seal(Kseal-1, M || Sign(K sign-1, M))

Often Sign is replaced with a checksum ???

Concrete crypto is for experts only!

Public Key vs. Shared Key

Public key: K ¹ K-1

Broadcast

Slow

Non-repudiable (only one possible sender)

Used for certificates

Key Þ name: KIntel says KAlice Þ Alice@Intel

Temp key Þ key:  Ktemp says KSSL Þ Ktemp

                              KAlice says Ktemp Þ KAlice

Shared key: K = K-1

Point to point

Fast

Can simulate public key with trusted on-line server

How Fast is Encryption?







Use

Notes

rsa encrypt

5

ms (25 KB/s)

sign

1000 bit modulus

rsa decrypt

0.2

ms (625 KB/s)

verify

Exponent=17

sha-1

70

MBytes/s

sign

hmac

aes

50

MBytes/s

seal

256 bit key



On 2 GHz Pentium, Microsoft Visual C++. Data from Wei Dai at www.cryptopp.com

Might be 2x faster with careful optimization

Fast Encryption in Practice

Want to run at network speed.

How? Put encryption into the data path.

Network interface parses the packet to find a
key identifier and maps it to a key for decryption

Parsing depends on network protocol (e.g., TCP/IP)

Messages on Encrypted Channels

If K says s, we say that s is signed by K

Sometimes we call “K says s” a certificate

The channel isn’t real-time: K says s is just bits

K says s can be viewed as

An event: s transmitted on channel K

A pile of bits which makes sense if you know the decryption key

A logical formula

Messages vs. Meaning

Standard notation for Seal(Kseal-1, M || Sign(K sign-1, M)) is {M}K. This does not give the meaning

Must parse message bits to get the meaning

Need unambiguous language for all K’s messages

In practice, this implies version numbers

Meaning could be a logical formula, or English

A, B, {K}KCA means C says (to A) “K is a key”. C says nothing about A and B. This is useless

{A, B, K}KCA means C saysK is a key for A to talk to B”. C says nothing about when K is valid

{A, B, K, T}KCA means C saysK is a key for A to talk to B first issued at time T

Replay

Encryption doesn’t stop replay of messages.

Receiver must discard duplicates.

This means each message must be unique.
    Usually done with sequence numbers.

Receiver must remember last sequence number while the key is valid.

Transport protocols solve the same problem.

Timeliness

Must especially protect authentication against replay

If C says KA Þ A to B and Eve records this, she can get B to believe in KA just by replaying C’s message.

Now she can replay A’s commands to B.

If she ever learns KA, even much later, she can also impersonate A.

To avoid this, B needs a way to know that C’s message is not old.

Sequence numbers impractical—too much long-term state.

Timestamps and Nonces

Timestamps

With synchronized clocks, C just adds the time T, saying to B

KC says KA Þ A at T

Nonces

Otherwise, B tells C a nonce NB which is new, and C sends to B

KC says KA Þ A after NB

NAMES FOR PRINCIPALS

Authorization is to named principals. Users have to read these to check them.

Lampson may read file report

Root names must be defined locally

 KIntel Þ Intel

From a root you can build a path name

Intel/Alice   (= Alice@Intel)

With a suitable root principals can have global names.

/DEC/SRC/Lampson may read file  /DEC/SRC/udir/Lampson/report

Authenticating Names

KIntel Þ Intel Þ Intel/Alice   (= Alice@Intel)

Ktemp

Þ

KAlice

Þ

Alice@Intel

Þ ...





KIntel says





Authenticating a Channel

Authentication — who can send on a channel.

C Þ P; C is the channel, P the sender.

Initialization some such facts are built in: Kca  Þ CA.

To get new ones, must trust some principal, a certification authority.

Simplest: trust CA to authenticate any name:
    CA Þ Anybody

Then CA can authenticate channels:

Kca   says Kws  Þ WS
K
ca   says Kbwl  Þ bwl

One-Way Authentication

Mutual Authentication

This also works with shared keys, as in Kerberos.

Who Is The CA

“Built In”

CA’s in browsers

There are lots

Because of politics

Look at Tools / Internet options / Content / Publishers /
Trusted root certification authorities

This is a configuration problem

Revocation

Revoke a certificate by making the receiver think it’s invalid.

To do this fast, the source of certificates must be online.

This loses a major advantage of public keys, and reduces security.

Solution: countersigning —

An offline CAassert, highly secure.

An online CArevoke, highly timely.

Both must sign for the certificate to be believed, i.e.,

CAassert and CArevoke Þ Anybody

Large-Scale Authentication

A large system can’t have CA Þ Anybody.

Instead, must have many CA's, one for each part.

One natural way is based on a naming hierarchy:

A tree of directories with principals as the leaves

Large-Scale Authentication: Example

Keep trust as local as possible:

Authenticating A to B needs trust only up to
least common ancestor

dec  for  /dec/lampson ® /dec/abadi

root for  /dec/lampson ® /mit/clark

Rules for Path Names

New operator except:

Informally, P except M can speak for P / N as long as NM

Axioms

P

except M

Þ P





(P

except M) | N

Þ P / N except..’

if NM

child

(P / N

except M) | ‘..’

Þ P except N

if N ≠ ‘..’

parent



Effect: Authentication can traverse the tree outward from the starting point, but can never retrace its steps

Rules for Path Names: Example

Start with  Clampson   Þ /dec/lampson except nil           known

Clampson    says  Cdec    Þ /dec except lampson      parent
Cdec             says  Croot          Þ / except dec           parent
Croot            says  Cmit    Þ /mit except..           child
Cmit             says  Cclark   Þ /mit/clark except..    child

Trusting Fewer Authorities: Cross-Links

For less trust, add links to the tree

Now lampson trusts only dec for
  /dec/lampson ® /dec/mit/clark

Login

Chain of responsibility:

KSSL

Þ

Ktemp

Þ

KAlice

Þ

Alice@Intel

Þ ...

Ktemp says

KAlice says









(SSL setup)

(via smart card)









Authenticating Users

Goals

Hide the secret that authenticates the user

Authenticate without disclosing it

Let a node N speak for the user:  N Þ Alice

Method

KAlice Þ Alice
KAlice says N Þ Alice

KAlice–1 is the user’s secret

It can be stored encrypted by her password,
or better, held inside a smart card.

Identifying Nodes for Login Delegation

Usually a workstation has no permanent identity

Not true for servers

Workstation might have a “meets ITG policy” identity

Need a temporary principal for Alice to delegate to at login

Generate login session key Ktemp



User Credentials

CA generates:

user key:                     KAlice–1

child certificate:          KCA  says KAlice  Þ Alice

Certificate is public

Where to keep KAlice–1?

Smart card

Encrypted by password

On a server



Server-mediated Login

Workstation talks to login server

Server confining user’s presence

Password

One-time password

Time-varying password

Smart card

Biometrics

Two-factor Authentication

Problems with passwords

Advantages of physical “tokens”

What if token is stolen?

Combine token and something tied to user

Password / PIN

Biometrics

Problem with passwords: exhaustive search

Problems with biometrics: not secret, can’t change



Login with Node Identity

Check Kca  says KAlice Þ Alice

Generate Ktemp –1, a login session key.

Delegate to session key K temp and node key Kn

KAlice   says (Ktemp and Kn)  Þ KAlice

Then the session key countersigns with a short timeout, say 30 minutes:

    Ktemp says Kn  Þ Ktemp

OS discards Ktemp –1 at logout, and the delegation expires within 30 minutes.

GROUPS and Group Credentials

Defining groups: A group is a principal; its members speak for it

Alice@Intel   Þ Atom@Microsoft

Bob@Microsoft Þ Atom@Microsoft

. . .

Proving group membership: Use certificates

K Microsoft says Alice@Intel  Þ Atom@Microsoft



Authenticating Groups

KMicrosoft Þ Microsoft Þ Atom@Microsoft

... Þ

KAlice

Þ

Alice@Intel

Þ

Atom@Microsoft

Þ ...







KMicrosoft says





What Is A Group

Set of principals

Alice@Intel Þ Atom@Microsoft

Principals with some property

Resident over 21 years old

Type-checked program

Can think of the group (or property) as an attribute of each principal that is a member

Certifying Properties

Need a trusted authority: CA Þ typesafe

Actually KMS says CA Þ KMS / typesafe

Usually done manually

Can also be done by a program P

A compiler

A class loader

A more general proof checker

Logic is the same: P Þ typesafe

Someone must authorize the program:

KMS says P Þ KMS / typesafe

Groups As Parameters

An application may have some “built-in” groups

Example: In an enterprise app, each division has

groups: manager, employees, finance, marketing

folders: budget, advertising plans, ...

Thus, the steel division is an instance of this, with

steelMgr, steelEmps, steelFinance, steelMarketing

folders: steelBudget, steelAdplans, ...

P and Q: Separation of Duty

Often we want two authorities for something.

A and B says s = (A says s) Ù (B says s)

We use a compound principal with and to express this:

Lampson and Taylor      two users

Lampson and Ingres      user running an application

CAassert        and CArevoke         online and offline CAs

P or Q: Weakening

Sometimes want to weaken a principal

A or B says s = (A says s) Ú (B says s)

A Ú B says “read f ” needs both AÞR f and BÞR f

Example: Java rule—callee Þ caller Ú callee-code

Example: NT restricted tokens—if process P is running untrusted-code for blampson then
P Þ blampson Ú untrusted-code



P as R: Roles

To limit its authority, a principal can assume a role.

People assume roles: Lampson as Professor

Machines assume roles as nodes by running OS programs: Vax#1724 as bsd4.3a4 = Jumbo

Nodes assume roles as servers by running services:

Jumbo as SRC-NFS



Metaphor: a role is a program

Encoding: A as R º A | R        if R is a role

Axioms:     A Þ*ÞA|R A as R    if R is a role

B for A:  Melding

B for A:  B acting on behalf of A

Workstation22 for Lampson

Ingres for Lampson

Axiom:        (A | B) and (B | A) Þ B for A

To delegate —

A offers:      A | B                    says B | A Þ B for A

B accepts:    B | A                    says B | A Þ B for A

Together:    (A | B  and B | A) says B | A Þ B for A

Final delegation:                             B | A Þ B for A

Using a Meld

Suppose the ACL for file foo says

SRC-WS for Lampson may read foo

If we know WS22 Þ SRC-WS
then            WS22 for Lampson may read foo

Meld Example: Login Credentials

Get Kbwl–1 from Encrypt(PW, Kbwl–1) with user’s password

Check Kca  says Kbwl  Þ bwl

Offer meld to node key Kn:

Kbwl | Kn   says                Kn Þ (Kws as Taos) for Kbwl

Node accepts meld (given Kn  Þ Kws as Taos):

Kn | Kbwl  says                 Kn Þ (Kws as Taos) for Kbwl

And from the for axiom & handoff

Kn Þ (Kws as  Taos) for Kbwl

An Example



Example: Details

AUTHENTICATING SYSTEMS: Loading

A digest X can authenticate a program SQL:

KMicrosoft says “If image I has digest X then I is SQL
    formally    X Þ KMicrosoft / SQL

This is just like KAlice Þ Alice@Intel

But a program isn’t a principal: it can’t say things

To become a principal, a program must be loaded into a host H

Booting is a special case of loading

X Þ SQL makes H

want to run I if H likes SQL

willing to assert that SQL is running

Authenticating Systems: Roles

A loaded program depends on the host it runs on.

We write H as SQL for SQL running on H

H as SQL says s   =   H says SQL says s

H can’t prove that it’s running SQL

But H can be trusted to run SQL

KTCS says H as SQL Þ KTCS / SQL

This lets H convince others that it’s running SQL

H says C Þ KTCS / SQL



Node Credentials

Machine has some things accessible at boot time.

A secret Kws–1             A trusted CA key Kca

Boot code does this:

Reads Kws–1 and then makes it unreadable.

Reads boot image and computes digest Xtaos.

Checks Kca  says Xtaos  Þ Taos.

Generates Kn–1, the node key.

Signs credentials Kws says Kn Þ Kws as Taos

Gives image Kn1 , Kca , credentials, but not Kws–1.

Other systems are similar: Kws as Taos as Accounting

Node Credentials: Example

Example: Server’s Access Control

Kws  says Kn  Þ Kws as Taos

node

credentials

Kbwl  says Kn  Þ

(Kws as Taos) for Kbwl

login session



Kn  says C  Þ Kn

channel



C says C | pr  Þ (Kws as Taos as Accounting) for Kbwl

process



C | pr says “read file foo



request

Sealed Storage: Load and Unseal

Instead of authenticating a new key for a loaded system,

Kws says Kn Þ Kws as Taos

Unseal an existing key

SK = Seal(KWSseal-1, < ACL: Taos, Stuff: KTaosOnWS-1>)

Save(ACL: Taos, Stuff: KTaosOnWS-1>) returns SK

Open(SK) returns KTaosOnWS-1if caller Þ Taos

Assurance: NGSCB (Palladium)

A cheap, convenient, “physically” separate machine

A high-assurance OS stack (we hope)

A systematic notion of program identity

Identity = digest of (code image + parameters)

Can abstract this: KMS says digest Þ KMS / SQL

Host certifies the running program’s identity:
     H says  K Þ H as P

Host grants the program access to sealed data

H seals (data, ACL) with its own secret key

H will unseal for P if P is on the ACL



NGSCB Hardware

Protected memory for separate VMs

Unique key for hardware

Random number generator

Hardware attests to loaded software

Hardware seals and unseals storage

Secure channels to keyboard, display

NGSCB Issues

Privacy: Hardware key must be certified by manufacturer

Use Kws to get one or more certified, anonymous keys from a trusted third party

Use zero-knowledge proof that you know a mfg-certified key

Upgrade: v7of SQL needs access to v6 secrets

v6 signs “v7 Þ v6”

or, both Þ SQL

Threat model: Other software

Won’t withstand hardware attacks

NGSCB Applications

Keep keys secure

Network logon

Authenticating server

Authorizing transactions

Digital signing

Digital rights management



Need app TCB: factor app into

a complicated , secure part that runs on Windows

a simple, secure part that runs on NGSCB

AUTHORIZATION in Access Control

Guards control access to valued resources.

Structure the system as —

Objects        entities with state.

Principals   can request operations

                    on objects.

Operations  how subjects read or change objects.

Authorization Rules

Rules control the operations allowed
for each principal and object.



Principal may do

Operation      on

Object

Taylor

Read

File “Raises

Lampson

Send “Hello

Terminal 23

Process 1274

Rewind

Tape unit 7

Schwarzkopf

Fire three shots

Bow gun

Jones

Pay invoice 432

Account Q34

Access Matrix



File Raises

Account Q34

Tape unit 7

Lampson

read

deposit



Process 1274

read/write



r/w/rewind

Finance dept



deposit/ withdraw



Representing the Access Matrix



O1

O2

O3

P1

T11

T12



P2

T21



T23

P3



T32







Capability

          ACL





Prefer ACLs for long-tem authorization

Usually need to audit who can access a resource

Capabilities are fine as a short-term cache

OS file descriptors for open files

Authorization with ACLs

View a resource object O as a principal

P on O’s ACL means P can speak for O

Permissions limit the set of things P can say for O

If Spectra’s ACL says Atom can r/w, that means

Spectra says Atom@Microsoft Þr/w Spectra

Access Control Lists (ACLs)

Object O’s ACL says: principal P may access O.

Lampson may read and write O

(Jumbo for SRC) may append to O

ACLs need named principals so people can read them.

Checking access:

Given a request          Q says read O
           an acl           P may read/write O

Check that                  Q speaks for P           Q Þ P

           rights suffice   read/write ≥ read

Permissions

Principal A speaks for B about T  A ÞT B
If A says something
in set T, B does too:

Thus, A is stronger than B, or responsible for B, about T

Precisely: (A says s) Ù (s Î T) implies (B says s)

Permissions represent sets of statements

P may read/write O     =    P Þr/w O

Traditionally they appear only in ACLs, not in delegations, which are unrestricted



T can specify some objects and some of their methods

Expressing sets of statements.

SDSI / SPKI uses “tags” to define sets of statements

A tag is a regular expression, that is, a set of strings

The object interprets a string as a set of statements

   Read(*.doc) = reads of files named *.doc

< 5000 = purchase orders less than $5000

Also can express unions and intersections of sets

   Read(*.doc) and < 5000

Expressive T allows bigger objects: a single permission for all .doc files



Transitivity: Intersecting Sets

If A ÞT B and B ÞU C then A ÞTÇU C

Why?

A ÞT B ≡ (A says s) Ù (s Î T) implies (B says s)

B ÞU C ≡ (B says s) Ù (s Î U) implies (C says s)

How to implement set intersection ?

Might be able to simplify the expression

Always can test s against both T and U

Pragmatics

Authorization must be

set up

later checked for correctness

changed as life goes on

This works best when the authorization data is small and simple

But, want to authorize the “least privilege” needed to get the job done



Conflict. Who wins?

Keeping Authorization Simple

ACLs on large sets of resources

Big subtrees of the file system

Large sets of web sites

Usually for groups, principals that have some property, such as “Microsoft employee” or “type-safe” or “safe for scripting”

IMPLEMENTATION

Process Credentials

Make a node-to-node channel C = des(Ksr) using shared key encryption.

Establishing Ksr yields C Þ Kn.

The OS multiplexes this single channel among processes.

The OS issues credentials for the subchannels C | pr.
More multiplexing lets a process speak for several principals.

API for Authentication

Prin represents principals, with a subtype Auth for that a process can speak for

AID is an Auth identifier, a byte string

Authenticating messages

GetChan(dest:Address): Chan;

GetAID(p:Auth): AID;

Send(dest:Chan; m:Msg);

Receive(): (Chan, Msg);

GetPrin(c:Chan; aid:AID): Prin;

RPC marshals an Auth parameter and unmarshals an aid automatically, thus hiding all these procedures

API for Authentication (2)

Authorization

Check(acl:ACL; p:Prin): BOOL

Managing principals

Inheritance(): ARRAY OF Auth;

Login (name, password: TEXT): Auth;

AdoptRole(a:Auth; role:TEXT): Auth;

Offer (a:Auth; b:Prin): Auth;

Claim(b:Auth; meld:Prin): Auth;

Discard(a:Auth; all:BOOL);

API for Melding

Offer (a:Auth; b:Prin): Auth;

Claim(b:Auth; meld :Prin): Auth;

    Offer



Implementation Internals

Secure Channel, Authority Managers

The secure channel manager creates process-to-process secure channels.

TYPE ChanID = { nk:KeyDigest; pr:INT; addr:Address };

GetChanID(ch:Chan): ChanID;

PTagFromChan(c:ChanID): PTag;



The authority manager associates Auths with processes and handles authentication requests.

TYPE PrinID = { ch:ChanID; aid:AID };

Delegate(a:Auth; ptag:PTag);

PurgePTag(ptag: PTag);

Credentials Manager

Maintains credentials for local processes and validates certificates from other nodes.



TYPE Cred = TEXT, CredT = ...;

New(name, password: TEXT): CredT;

AdoptRole(t:CredT; role: TEXT): CredT;

Sign(t:CredT; p:PrinID): Cred;

Validate(cr:Cred; p:PrinID): TEXT;

Extract(cr:Cred): Cred;

SignMeld(t:CredT; cr:Cred): Cred;

ClaimMeld(t:CredT; cr:Cred): CredT;

Certification Library

Establishes a trusted mapping between principal names and keys, and between groups and their members.



CheckKey(name:TEXT; k:Key): BOOL;

IsMember(name, group: TEXT): BOOL;

CheckImage(d:Digest; prog, cert: TEXT);

Interfaces to Authentication

There are two styles:

Implicit in communication

Authenticate at connection establishment; a client can find out the principal that the connection speaks for.

Authenticate as part of a remote procedure call; the procedure can find the principal the caller speaks for.

Explicit

Pass the sending principal explicitly in every message.

More flexible: can pass more than one principal.

Either way abstracts authentication protocol details.

The interface just tell you the authenticated principal.

Implementing Authentication: Push vs. Pull

Two ways for receiver B to authenticate sender A:

Push credentials: sender to receiver (Windows SIDs):

A sends B credentials of channel C: proof that C Þ A.

Pull credentials: receiver from sender (ACLs, Taos):

A just sends to B on C.  B calls back to A to get credentials. B may cache them

Variations

A pushes part of the credentials, and B pulls the rest.

B gets part of the credentials from A, stores part himself, and gets part from network services.

Pull Authentication: Example

Process pr sends on C | pr; OS multiplexes C.

Receiver’s auth agent asks for C | pr credentials.

Abbreviations

Extend pull to names:

Sender has some long names for principals

Choose a short (integer, byte string) abbreviation for each name

AID is an example

Send the short name; if receiver doesn’t know its definition, it calls back to pull it over

Short names must not be reused

Receiver can discard its short name cache anytime

It will be refreshed by pull if needed

Example: Details

The Example Reviewed

Kws  says Kn  Þ Kws as Taos

node

credentials

Kbwl  says Kn  Þ

(Kws as Taos) for Kbwl

login session



Kn  says C  Þ Kn

channel



C says C | pr  Þ (Kws as Taos as Accounting) for Kbwl

process



C | pr says “read file foo



request

Bytes vs. Secure Data

Can choose the the flow and storage of encrypted bytes optimize

simplicity

performance

availability.

Public key = off-line broadcast channel.

Write certificate on a tightly secured offline system

 Store it in untrusted system; anyone can verify it.

Certificates are secure answers to pre-determined queries, (for example, “What is Alice’s key?”) not magic.

It’s the same to query an on-line secure database (say Kerberos KDC) over a secure channel

Caching Secure Data

Caching can greatly improve performance

It doesn’t affect security or availability

as long as there’s always a way to reload the cache if gets cleared or invalidated

Auditing

Checking access:

Given    a request       Q says read O
              an ACL         P may read/write O

Check that                  Q speaks for P              Q Þ P

              rights are enough              read/writeread

Auditing

Each step is justified by

a signed statement, or

a rule

Implement: Tools and Assurance

Services — tools for implementation

Authentication Who said it?

Authorization   Who is trusted?

Auditing           What happened?

Trusted computing base

Keep it small and simple

Validate each component carefully

The “Speaks for” Relation  Þ

Principal A speaks for B about T  A ÞT B
If A says something
in set T, B does too:

Thus, A is stronger than B, or responsible for B, about T

Precisely: (A says s) Ù (s Î T) implies (B says s)

These are the links in the chain of responsibility

Examples

Alice          Þ Atom           group of people

Key #7438  Þ Alice         key for Alice

Chain of responsibility

Alice at Intel, working on Atom, connects to Spectra, Atom’s web page, with SSL

Chain of responsibility:

    KSSL Þ Ktemp Þ KAlice
  Þ Alice@Intel Þ Atom@Microsoft  Þ Spectra

References

Look at my web page for these: research.microsoft.com/lampson

Computer security in the real world. At ACSAC 2000. A shorter version is in IEEE Computer, June 2004

Authentication in distributed systems: Theory and practice. ACM Trans. Computer Sys. 10, 4 (Nov. 1992)

Authentication in the Taos operating system. ACM Trans. Computer Systems 12, 1 (Feb. 1994)

SDSI—A Simple Distributed Security Infrastructure, Butler W. Lampson and Ronald L. Rivest.

References

Jon Howell and David Kotz. End-to-end authorization. In Proc. OSDI 2000

Paul England et al. A Trusted Open Platform, IEEE Computer, July 2003



Ross Anderson—www.cl.cam.ac.uk/users/rja14

Bruce Schneier—Secrets and Lies

Kevin MitnickThe Art of Deception
